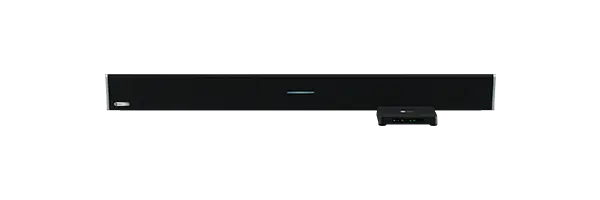

Nureva Audio HDL310
$0.00
Discover the simple and scalable way to get pro performance in large spaces up to 30' x 30' (9.1 x 9.1 m). The HDL310 is your no-compromise alternative to all-in-one sound bars that have limited microphone pickup range and custom AV systems that are costly and complex.
SPECIFICATIONS
HDL310 Technology features
- Advanced Microphone Mist technology processing platform
- Continuous autocalibration
- Position-based gain control
- Acoustic echo cancellation
- Built-in sound masking
- Plug and play, no software or drivers required
- Single Ethernet cable to microphone and speaker bar
- Primary audio source for video playback
- Integrated, multicolor status LED
Microphones
- 12 low-noise omnidirectional MEMS
- Frequency response at 94 dB SPL 100 Hz to 7 kHz
- Total harmonic distortion (THD) 0.25% (typical)
Speakers
- 2 x 20 W 4" aluminum cone
- Acoustic output (hardware capable): 91 dB SPL @ 1 m
- Total harmonic distortion (THD) 0.25% (typical)
CONNECT MODULE
- USB 2.0 interface to computer or collaboration hub, type B
- Auxiliary out — 3.5 mm single-ended stereo jack
- Auxiliary in — 3.5 mm single-ended stereo jack
- 2 connections to microphone and speaker bar RJ45
- Console Direct RJ45 for connecting to network
- Input jack for power supply
INTEROPERABILITY
Certified for Microsoft Teams and Zoom. Plug and play compatibility with other UC&C platforms including Google MeetTM, GoTo Meeting, Cisco Webex®, BlueJeans, Lifesize®, RingCentral MeetingsTM and more
Easy integration with third-party solutions such as cameras, displays, lecture capture systems, external speakers and headset microphones (for Voice Amplification Mode)
OPERATING
System requirements
- Windows® 10 and 11
- macOS® 10 and 11
- (Big Sur and Catalina)
Power
- Power rating: universal switching 100–240 V AC, 50–60 Hz
- Power consumption: <30 W
Environmental
- Operating temperature: 0° C to 40° C (32° F to 104° F)
- Storage temperature: -20° C to 70° C (-4° F to 158° F), humidity 5–90% (noncondensing)
MANAGEABILITY
Includes Console Direct, which provides a continuous and secure connection to Nureva Console, our cloud-based device management platform
Console Direct security features
Secure IoT OS and system software with device-specific X.509 certificates and external services encrypted using 256-bit Transport Layer Security (TLS)
Information security management system (ISMS) that is ISO/IEC 27001:2013 certified
Built with Microsoft Azure, all data at rest is encrypted using 256-bit AES encryption, and data in transit uses TLS 1.2
Okta Identity Cloud for all identity and access management (IAM) services with OAuth 2.0 protocols to identify and authorize users
CERTIFICATIONS AND COMPATIBILITY
Electromagnetic
FCC Part 15, Class A; ICES-003, Class A; CISPR 32 (EN 55032), Class A; CISPR 35 (EN 55035); CISPR 24 (EN 55024)
Safety
UL 62368; CAN/CSA-C22.2 NO.62368; IEC/EN 62368; AS/NZS 62368; UL 60950; CAN/CSA-C22.2 NO.60950; IEC/EN 60950; AS/NZS 60950
Compliance
RoHS, REACH, POPs (Persistent Organic Pollutants), WEEE, California Proposition 65, EPA (TSCA — Toxic Substances Control Act) Restrictions
DIMENSIONS
Integrated microphone and speaker bar
Width: 60.0" (152.4 cm)
Height: 5.91" (14.9 cm)
Depth: 3.5" (9.0 cm)
Weight: 18.0 lb. (8.2 kg)
Connect module
Width: 8.7" (22.2 cm)
Height: 1.46" (3.7 cm)
Depth: 5.91" (15.0 cm)
Weight: 0.97 lb. (0.44 kg)
Shipping
Width: 64.75" (164.4 cm)
Height: 10.63" (27.0 cm)
Depth: 9.5" (24.1 cm)
Weight: 28.0 lb. (12.7 kg)
INCLUDES
Integrated microphone and speaker bar
Connect module, dark gray
Connect module mounting bracket, dark gray
Country specific power cable, 6' (2.5 m), black
Ethernet cable, CAT6 SSTP, 50' (15 m), Class 3 rated, black
USB Type A-B cable, 10' (3 m), VW-1 rated, black
Infrared remote with 2 AAA batteries
Documentation
WARRANTY
Integrated microphone and speaker bar and connect module — standard 2-year limited hardware
Accessories and cables — 30 days
Extended warranties are available through Nureva Pro subscriptions
PART NUMBERS
Black: HDL310-B
White: HDL310-W
Nureva Pro extension (1 year): NP-1Y
Nureva Pro extension (2 years): NP-2Y
Nureva Pro extension (3 years): NP-3Y
WARRANTY
Contact Teach Tek for Warranty Details
PRODUCT HIGHLIGHTS
- Full-room microphone pickup with 12 omnidirectional microphones and 8,192 virtual mics
- Integrated 20W speakers with external speaker connectivity option
- Patented Microphone Mist™ technology for advanced audio processing, echo cancellation, and noise reduction
- Certified for Microsoft Teams and Zoom, compatible with other UC&C platforms
- Plug-and-play setup via USB, single Ethernet cable, and Nureva Console for cloud-based device management
- Easy installation, ideal for large spaces up to 30' x 30'
RRP ONLY
Disclaimer: Specifications may vary between sizes and models. Information provided is subject to change or updates. For the most accurate and up-to-date details, please refer to the brand's or vendor's official website. Teach Tek cannot be held responsible for any discrepancies or outdated information.
